Spiral EMC Metric Cable Gland, IP68 Brass Bend-Resistant M12~M30 Cable Gland with Spiral Tail

Product Categories

Sino Cable Gland Factory

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

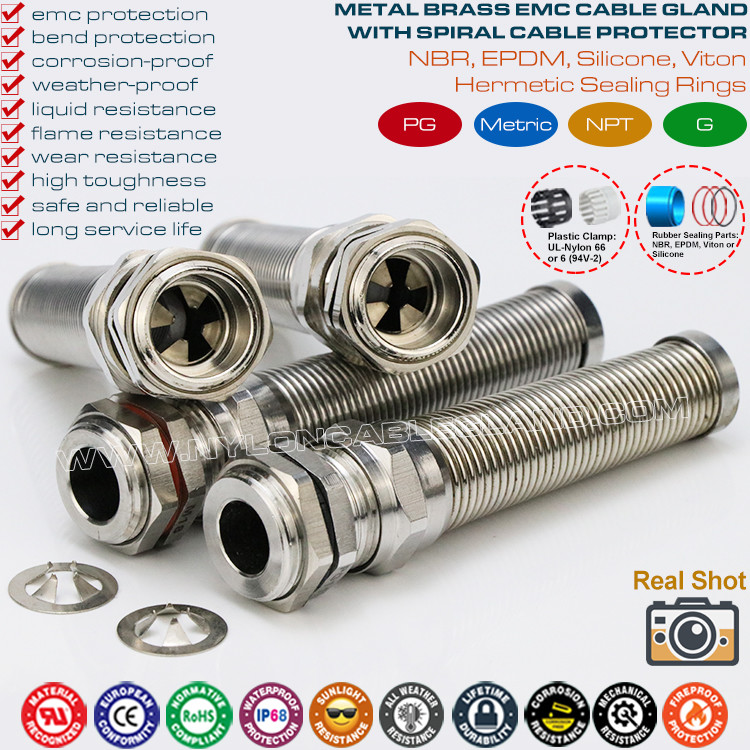

Spiral EMC Metric Cable Gland, IP68 Brass Bend-Resistant M12~M30 Cable Gland with Spiral Tail

Name: Spiral EMC Metric Cable Gland IP68 Brass BendResistant M12M30 Cable Gland with Spiral Tail
Brand: Sino Cable Gland Factory or OEM
Price: 1 USD

Quality Spiral EMC Metric Cable Gland, IP68 Brass Bend-Resistant M12~M30 Cable Gland with Spiral Tail wholesale

Place of Origin : Zhejiang, China

Brand Name : Sino Cable Gland Factory or OEM

Certification : CE, ROHS, REACH, IP68

Model Number : Metric Series

MOQ : 100pcs

Price : direct sale prices from factory

Packaging Details : standard export packing (special packing also available on request)

Delivery Time : normally 8-10 days

Payment Terms : T/T, L/C, Western union

Supply Ability : 2000000pcs / month

Delivery Terms : EXW, FCA, FOB, CIF, C&F

Size : M12x1.5~M30x1.5

Material : Spiral tail (stainless steel 303)

Waterpoof rate : IP68

Features : Protect cables against excessive bending and offer EMC protection

Contact Now

Description & Applications:

Electromagnetic interference has a constant effect on the proper functioning of electrical equipment, and shielded cables insulate against it - but only when they are installed in control boxes or cabinets, where cable glands play an important role - they protect the exposed cables from electromagnetic waves. Shielded cable glands block electromagnetic waves on the surface of the enclosure and protect the internal wiring and components by applying the "Faraday cage" principle.

Component manufacturers use a variety of techniques for EMC shielding, however, the integrated clamping technology of the cable gland is of paramount importance to ensure complete contact with the shield, which our EMC cable glands fulfill. When the clamping nut is tightened, the metal clamping layer wraps around and locks the shielding in place from all sides. Advantages of this technology: The design withstands the rigors of dynamic applications, avoids missing connections due to installation errors or material deterioration, and the 360-degree protection is permanently guaranteed.

With its outstanding ability of strong tensile strength, good sealing performance, high security and stability, such gands are widely applied for connecting and fastening flexible cables on hand-held equipment, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.

Our Advantages:

(1) Direct factory selling products at factory prices.

(2) All our products are friendly to earth (green products).

(3) High quality ensures long service life for indoor and outdoor applications.

(4) All the cable glands reach IP68 liquidtight protection.

(5) Timely delivery and good service are our principle.

(6) Free samples available.

(7) Special cable glands can be customized as per customer's samples or drawings.

(8) OEM services can be available.

About us:

Founded in 2005, we are one of the most professional manufacturer of cable accessories in China.

Currently we manufacture and export plastic cable joint, brass cable connector, stainless steel cable gland, flexible tube, pipe fitting, plastic cable tie, stainless steel cable strap, cable clip, etc.

With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!

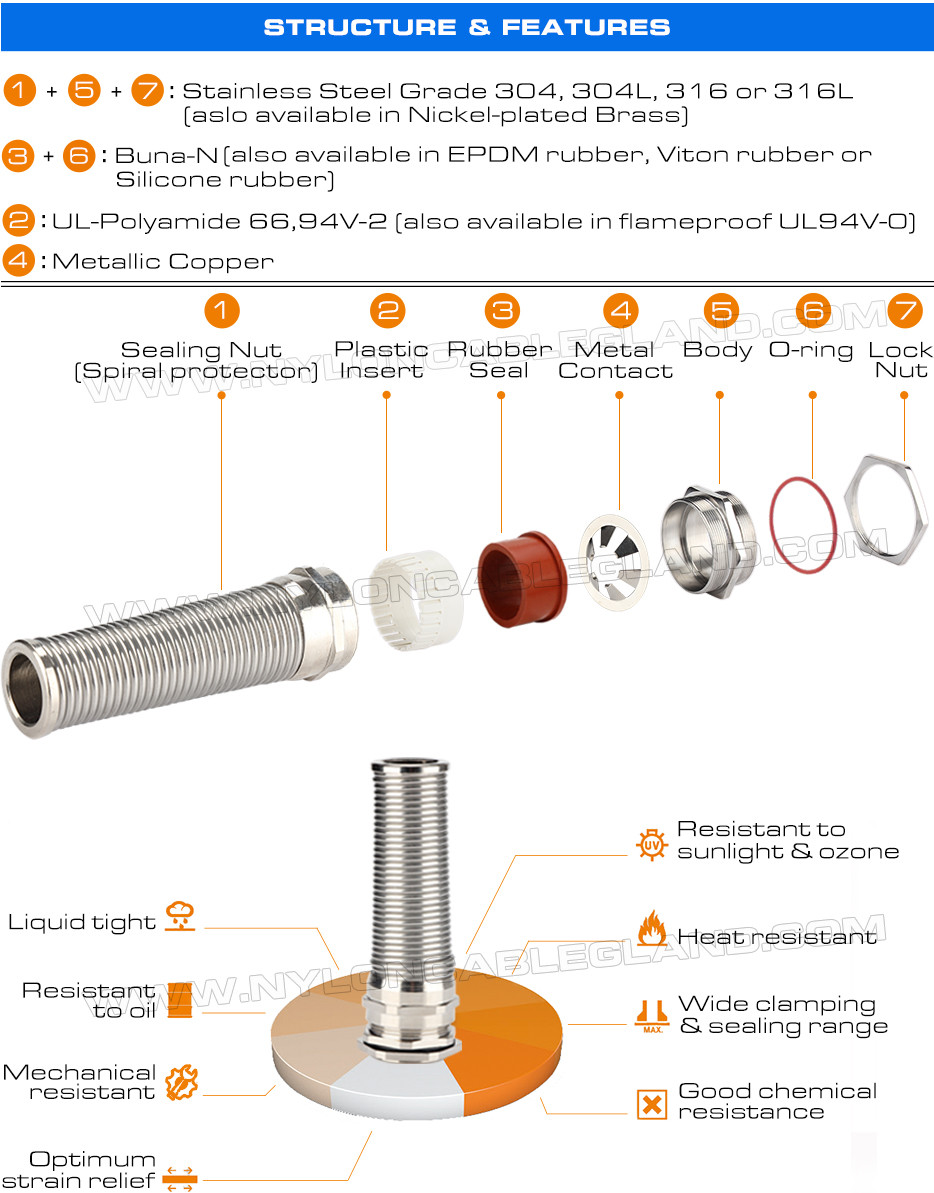

Descriptions:

Brand name:	Sino Cable Gland Factory
Place of origin:	Zhejiang, China
Product name:	Spiral EMC Metric Cable Gland, IP68 Brass Bend-Resistant M12~M30 Cable Gland with Spiral Tail
Sizes available:	* M12, M14, M16, M18, M20, M22, M24, M25, M27, M28, M30
Raw material:	Nickel-plated Brass for Locking Nut, Sealing Nut & Body
	UL-approved nylon 66, 94V-2 for Clamping Claw
	NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber)
	Stainless Steel for Spiral Spring
Standard colors:	Metallic color
Main advantages:	Exquisite workmanship and beautiful good-looks, unique design of claws and seals can provide strong strain relief and can provide continuous EMC protection. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications:	CE, ROHS, REACH, IP68
IP protection:	IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths:	Short thread & long thread are available
Thread system:	Metric: according to the standard EN60423
Operation temp.:	Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service:	Yes, available
Supply capability:	2,000,000 pieces per month
Minimum quantity:	100 pieces
Samples available:	Free samples available upon request
Delivery time:	Normally 5-7 days after confirmation of orders
Payment terms:	T/T in advance, Western Union, L/C at sight
Shipment terms:	EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing:	100 pieces / bag, 50pieces /color box, special packing can be customized as requested

Spiral EMC Metric Cable Gland, IP68 Brass Bend-Resistant M12~M30 Cable Gland with Spiral Tail

Spiral EMC Metric Cable Gland, IP68 Brass Bend-Resistant M12~M30 Cable Gland with Spiral Tail Images
